The SME 3009 Series II and Series III tonearms remain timeless icons of hi-fi engineering. Their legendary "fluid damping" systems are famous for taming low-frequency resonances, controlling arm vibration, and drastically improving cartridge tracking.
However, maintaining these vintage arms requires precision. Over time, original silicone oil degrades, traps dust, or leaks, resulting in a loss of soundstage clarity. This premium restoration kit provides everything you need to clean, refresh, and calibrate your SME damping system back to original factory performance.

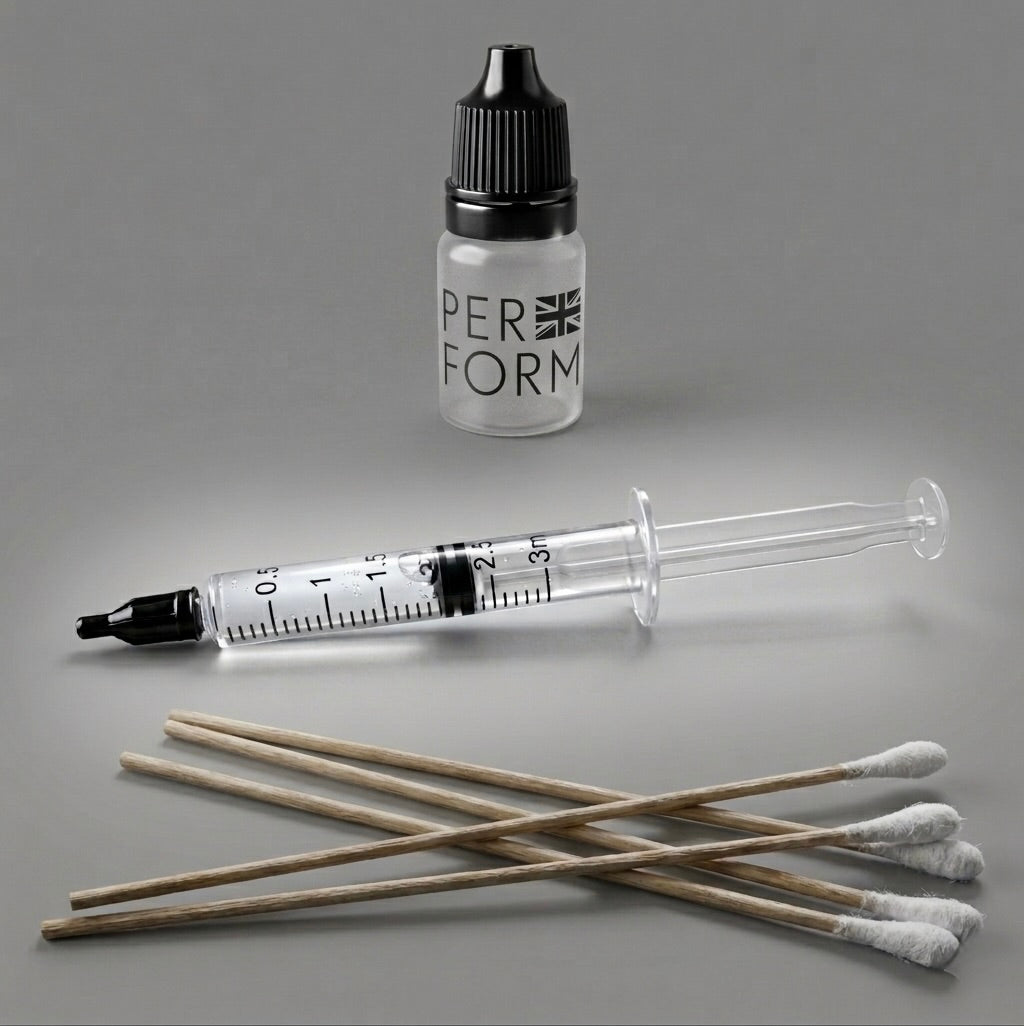

๐ฆ What's in the Box:
Pure Silicone Oil: 1 x OEM specification 2ml vial (Select your preferred viscosity)
- Isopropyl Alcohol (IPA): 1 x 5ml bottle (99.99% pure cleaning fluid)
- Eco Cleaning Buds: 5 x Long-reach pure cotton swabs
SME 3009 Tonearm Damping Guide: Fluid Viscosity & FD200 Refill Specs
Maintaining these vintage arms requires the correct silicone fluid viscosity to avoid "dulling" your sound or damaging the assembly.
1. SME 3009 Series III & IIIS (The FD200 System)
The Series III was specifically designed for high-compliance cartridges. To maintain its delicate tracking balance, the damping must be precise.
๐ฒ Technical Specifications
- Standard Viscosity: 100,000 cSt (Centistokes) / 100,000 cP (Centipoise)
- Material: Pure Dimethyl Silicone Fluid (Polydimethylsiloxane)
- Why 100k? This weight provides enough resistance to stabilise the arm against record warps without over-dampening the stylus's movement.
Choosing the Correct Paddle
The FD200 damper kit utilises colour-coded paddles to match your cartridge compliance:
| Paddle Color | Paddle Size | Recommended Cartridge Use |
|---|---|---|
| White | Large | High-compliance (Standard for Series III) |
| Grey | Medium | Medium-compliance |
| Black | Small | Low-compliance / Moving Coil (MC) |
2. SME 3009 Series II & Series II Improved
The earlier 3009 models are more mass-heavy than the Series III, requiring a different approach to fluid damping.
๐ Recommended Viscosity
- Original Factory Spec: 200,000 cSt.
- Modern Restoration Standard: 100,000 cSt.
Pro Tip: Many modern restorers prefer 100,000 cSt for the Series II Improved. The original 200k fluid can make the arm feel "sluggish," whereas 100k offers a "sweet spot" of control and musicality. Use 200k only if you are running a very heavy, low-compliance MC cartridge.
3. Quick Comparison: SME Tonearm Fluid Specs
If you are servicing multiple arms, use this reference table for the FD200 trough:
| Tonearm Model | Standard Viscosity | Notes |
|---|---|---|
| 3009 Series II / Improved | 200,000 cSt | Thick; often replaced with 100k for modern setups. |
| 3009 Series III | 100,000 cSt | Tuned for soft, high-compliance cartridges. |
| SME Series M2 | 60,000 cSt | Lighter fluid for modern medium-mass arms. |
| Cueing Dashpot | 300k โ 500k cSt | Used for the lift/lower mechanism only. |
4. Maintenance & Refill Tips
To ensure your SME tonearm performs at its peak, follow these best practices:
- โ ๏ธ The "Half-Full" Rule: Only fill the FD200 trough about halfway. Overfilling causes the silicone to "climb" the paddle via capillary action, potentially fouling the arm pivot.
- Fine-Tuning: Use the threaded screw to raise or lower the paddle. If the high-end "sparkle" of your music disappears, you have too much damping; raise the paddle or switch to a smaller size.
- Cleaning Old Fluid: Use Isopropyl Alcohol (IPA). It is the most effective solvent for breaking down aged silicone oil without damaging the plastic trough.
- Chemical Safety: Never use WD-40 or motor oil. Only use pure Polydimethylsiloxane. It is chemically inert, meaning it won't degrade plastic or seals and stays stable for decades.
Setup & Optimization Guide
Whether you are matching a specific cartridge or performing a full teardown restoration, here is how to handle the two most common setup scenarios:
Scenario A: Optimising for a Specific Cartridge
The goal is to achieve "critical damping"โwhere the arm settles quickly after a shock without being so stiff that it kills the music's dynamics.
- For High-Compliance (e.g., Ortofon OM40, vintage Shure V15): Use the White Paddle and 100,000 cSt fluid. Start with the paddle just touching the surface of the fluid. Lower it deeper if you see the arm "wobbling" over warps.
- For Modern Moving Coils (e.g., Denon DL-103, Hana, Lyra): These cartridges send more energy back into the tonearm. Use the Black Paddle with 200,000 cSt fluid to provide adequate "counter-force" against the stiff MC suspension.
The "Ear Test":
โข Too much damping: Soundstage shrinks, and treble sounds "rolled off" or dull.
โข Too little damping: Bass sounds bloated or "flabby," and the arm may jump easily when walking near the turntable.
Scenario B: The Full Teardown & Deep Clean
If you've bought a pre-owned SME 3009, old fluid is likely a dust-filled, sticky gel. Refresh it safely using these steps:
- Removing Old Gunk: Remove the plastic trough (if possible) and soak it in 99% Isopropyl Alcohol. Use a wooden toothpick or lint-free cotton swab to scoop out bulk oil. Avoid paper towels, as they leave contaminating fibers behind.
- Servicing the Cueing Dashpot: If your arm "crashes" onto records instead of drifting down slowly, use 300,000 to 500,000 cSt fluid. Apply a single drop (size of a matchstick head) onto the internal piston during lift bank disassembly for a slow, smooth descent.
- Inspecting Knife-Edge Bearings: Keep metal/plastic knife-edge bearings 100% bone-dry and free of silicone oil. Fluid inside the pivot assembly ruins designed friction specs.
Why Choose Our Syringe-Loaded Kits?
Pouring high-viscosity silicone oil from a standard bottle is nearly impossible without making a mess. Our premium kits deliver the oil in a pre-filled syringe with a blunt-tip dispensing needle. This allows you to cleanly inject exactly the 2ml required directly into the FD200 trough, keeping your pristine vintage chrome-work completely spotless.
