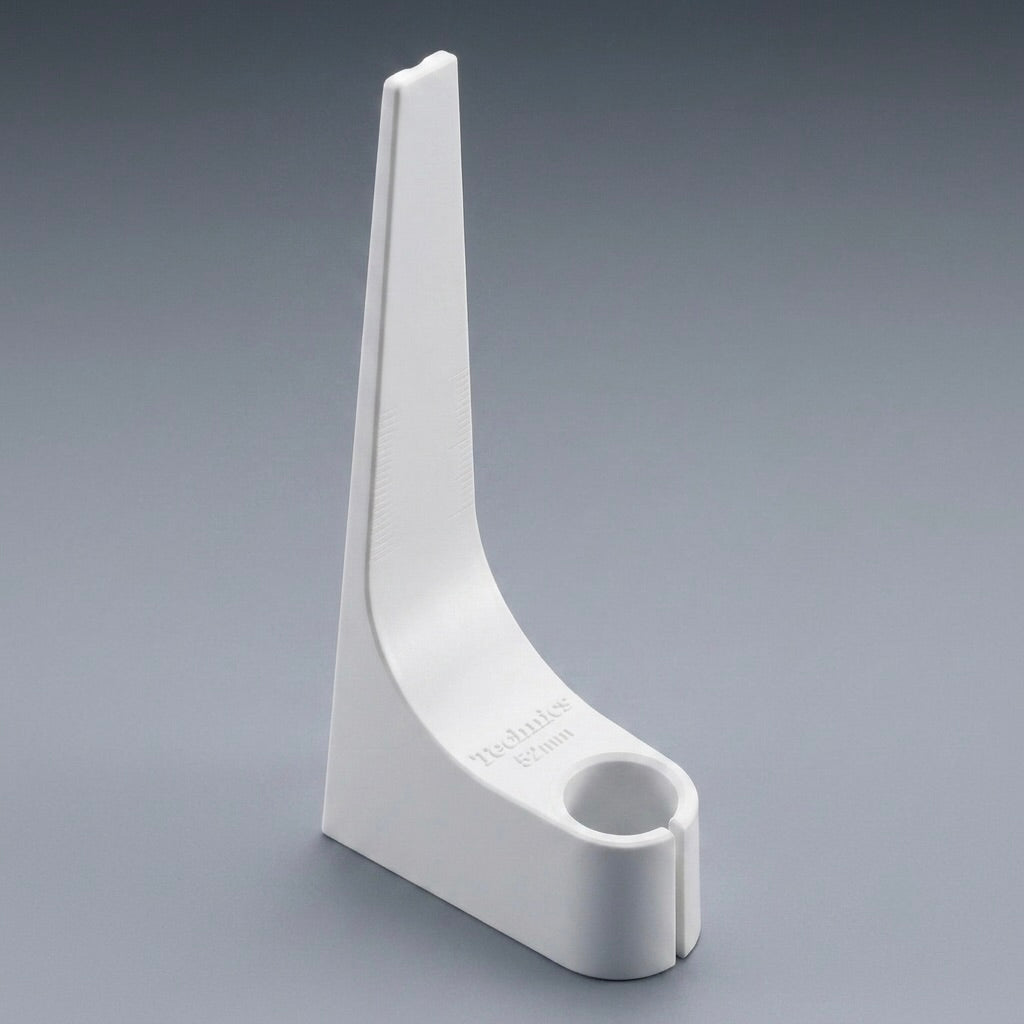

• A high-definition product photograph of a white Technics overhang gauge, a vinyl turntable accessory used for cartridge alignment. The L-shaped plastic tool stands vertically on a smooth, solid grey background, showcasing its clean lines and minimalist design. The base of the gauge features the embossed text "Technics 52mm" and holds a cylindrical opening designed for a turntable headshell. Subtle, faint measurement hash marks are visible along its inner curved slope.

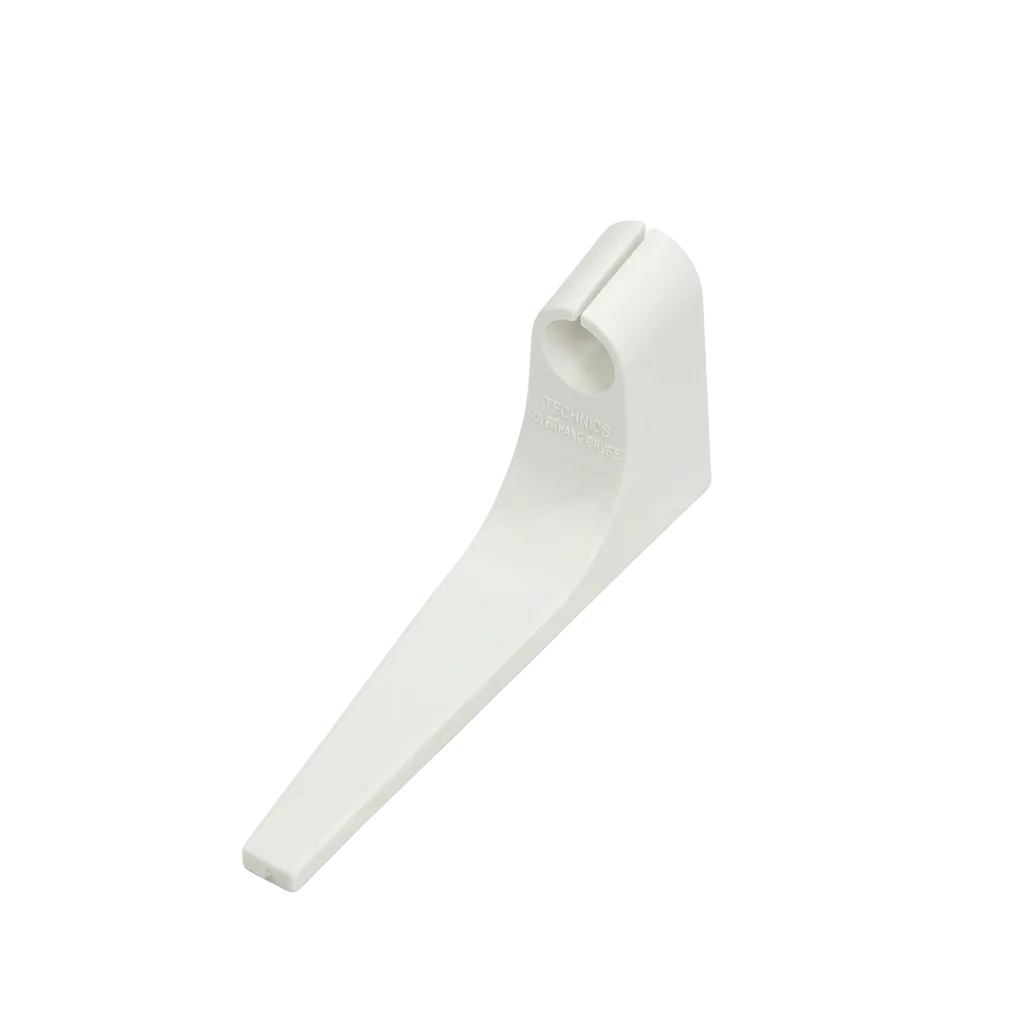

  • A white plastic Technics overhang gauge tool for turntable cartridge alignment, angled diagonally on a plain white background. The tool features a long, tapered pointer end and a raised, rounded cylindrical collar on the opposite end with a slot down the middle.
  • Technics Overhang Gauge SFK0135-01
  • Diagram showing how to adjust an overhang gauge for a cartridge
  • Technics Overhang Gauge SFK0135-01 (RMR2210-W)
1 5

Technics Overhang Gauge SFK0135-01

Technics Overhang Gauge SFK0135-01

£18.00
£18.00
Sale Sold out
Shipping calculated at checkout.

Genuine Technics Overhang Gauge SFK0135-01 (RMR2210-W) | Turntable Cartridge Alignment Tool

Optimise Your Turntable Performance with Perfect Cartridge Alignment

Achieve unrivalled audio precision and protect your vinyl collection with the Genuine Technics Overhang Gauge (Part No. RMR2210-W / SFK0135-01). Precision-engineered in Japan, this essential turntable setup tool ensures your phono cartridge is perfectly aligned to the standard 52mm specification, delivering pristine sound quality and minimising tracking errors.

Key Features & Benefits

  • Authentic Technics Part: 100% genuine Panasonic/Technics replacement component, guaranteeing absolute accuracy and seamless compatibility with your high-fidelity equipment.
  • Precision-Engineered Overhang: Allows you to effortlessly set the exact 52mm distance from the headshell gasket to the stylus tip for flawless tracking.
  • Enhance Your Listening Experience: Experience crystal-clear audio reproduction, richer soundstages, and drastically reduced inner-groove distortion.
  • Preserve Your Vinyl Collection: Correct stylus alignment prevents uneven record wear, extending the lifespan of both your precious vinyl LPs and your delicate stylus.
  • Simple Setup: Includes straightforward alignment principles, making turntable calibration quick and effortless for both audiophiles and beginners.

Universal Compatibility: Supported Technics Turntable Models

Series Compatible Models
Grand Class / Reference SL-1000R, SL-1025, SL-1200G, SL-1200GAE, SL-1200GEG, SL-1200GR, SL-1210GR, SL-1200GS
Classic SL-1200 Series SL-1200MK2, SL-1200MK5, SL-1200MK6, SL-1200M3D, SL-1210MK2, SL-1210MK5, SL-1210M3D, SL-1210M5G
Limited Editions SL-1200GLD, SL-1200GPP, SL-1200LTD
Standard Home Series SL-D202, and many other classic Technics models utilising the standard 52mm overhang geometry.

Technical Specifications

  • Manufacturer: Panasonic
  • Manufacturer Part Number (MPN): RMR2210-W
  • Former / Alternative Part Number: SFK0135-01
  • Condition: Brand New
  • Country of Manufacture: Japan
  • Target Overhang Distance: 52mm

How to Adjust Turntable Cartridge Overhang

Properly aligning your cartridge ensures the best sound quality and prevents premature wear on your vinyl records. Follow these three steps using the diagram in SFK0135.JPG as your guide:

1. Mount the Gauge

  • Fit the included overhang gauge securely onto the headshell.
  • Keep the mounting screws slightly loose so you can still slide and rotate the cartridge during adjustment.

2. Set the Overhang Distance (52 mm)

  • Slide the cartridge forward or backwards within the headshell slots.
  • Line up the stylus tip precisely with the very end edge of the gauge, which establishes the required 52 mm distance from the base of the headshell.

3. Align for Squareness (Facing)

  • Look at the headshell from directly above to ensure the cartridge is not twisted.
  • The cartridge body must be perfectly parallel with the sides of the headshell.

Alignment Check

Refer to the three bottom illustrations in SFK0135.JPG to confirm your alignment:

Alignment Visual Guide Status
Perfectly Straight Left Illustration CORRECT (O)
Twisted Inward Middle Illustration INCORRECT ($\mathbf{\oslash}$)
Twisted Outward Right Illustration INCORRECT ($\mathbf{\oslash}$)

💡 Pro-Tip: Once both the 52 mm distance and parallel alignment are perfect, carefully tighten the screws in an alternating pattern so the cartridge doesn't shift out of place.
