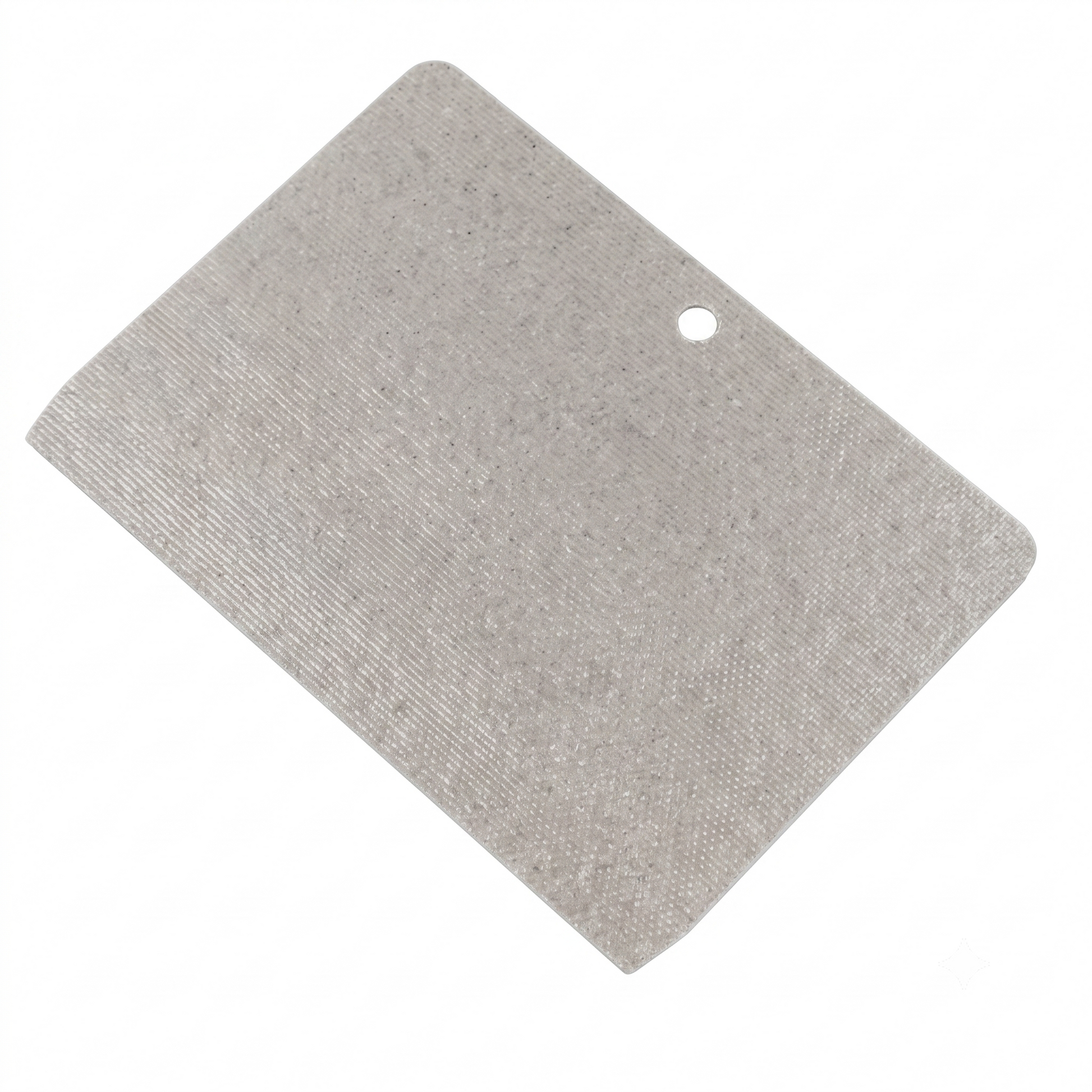

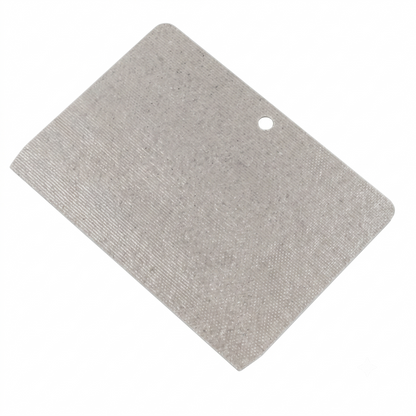

• A top-down view of a rectangular, textured grey microwave waveguide cover plate with a single pre-drilled hole, isolated against a plain white background.

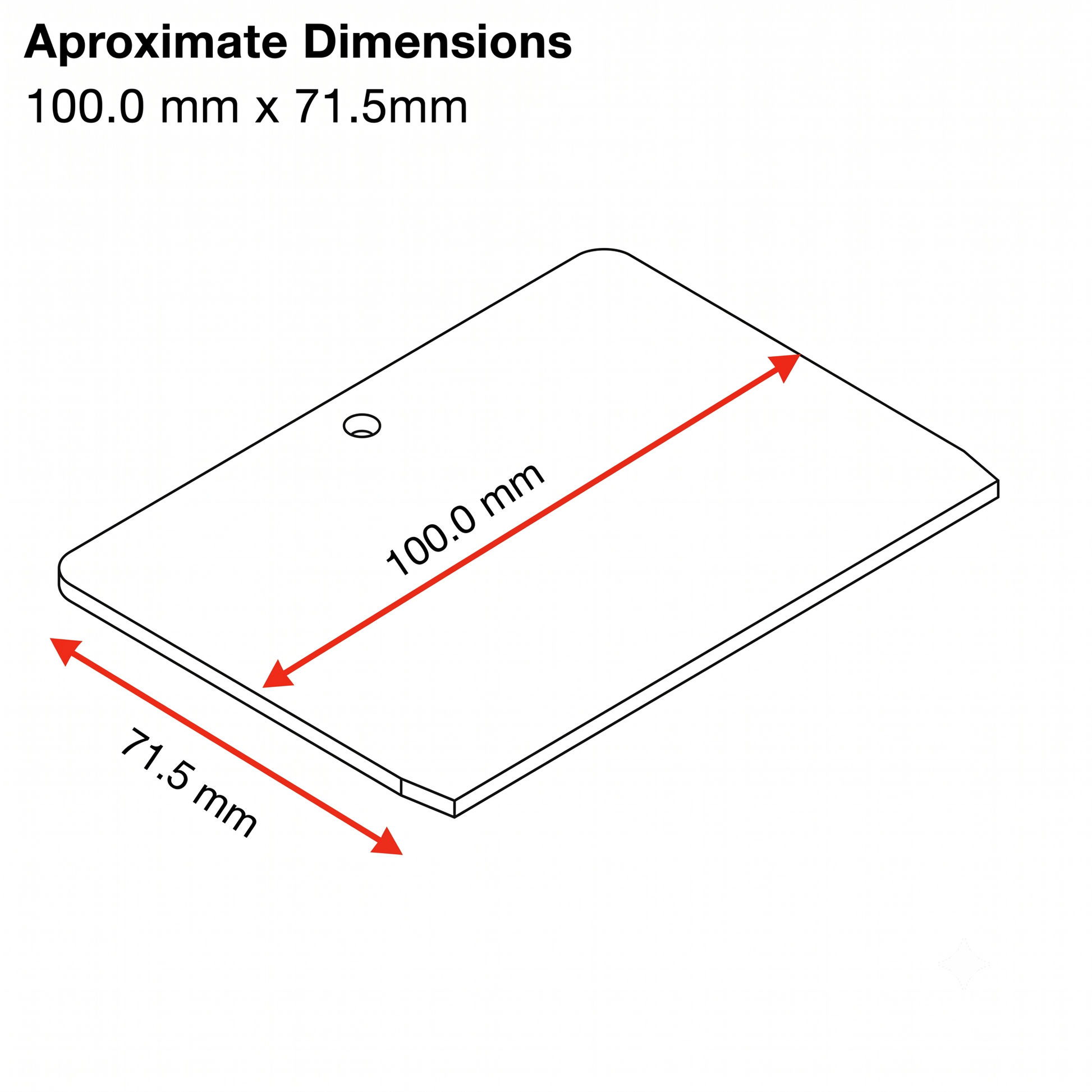

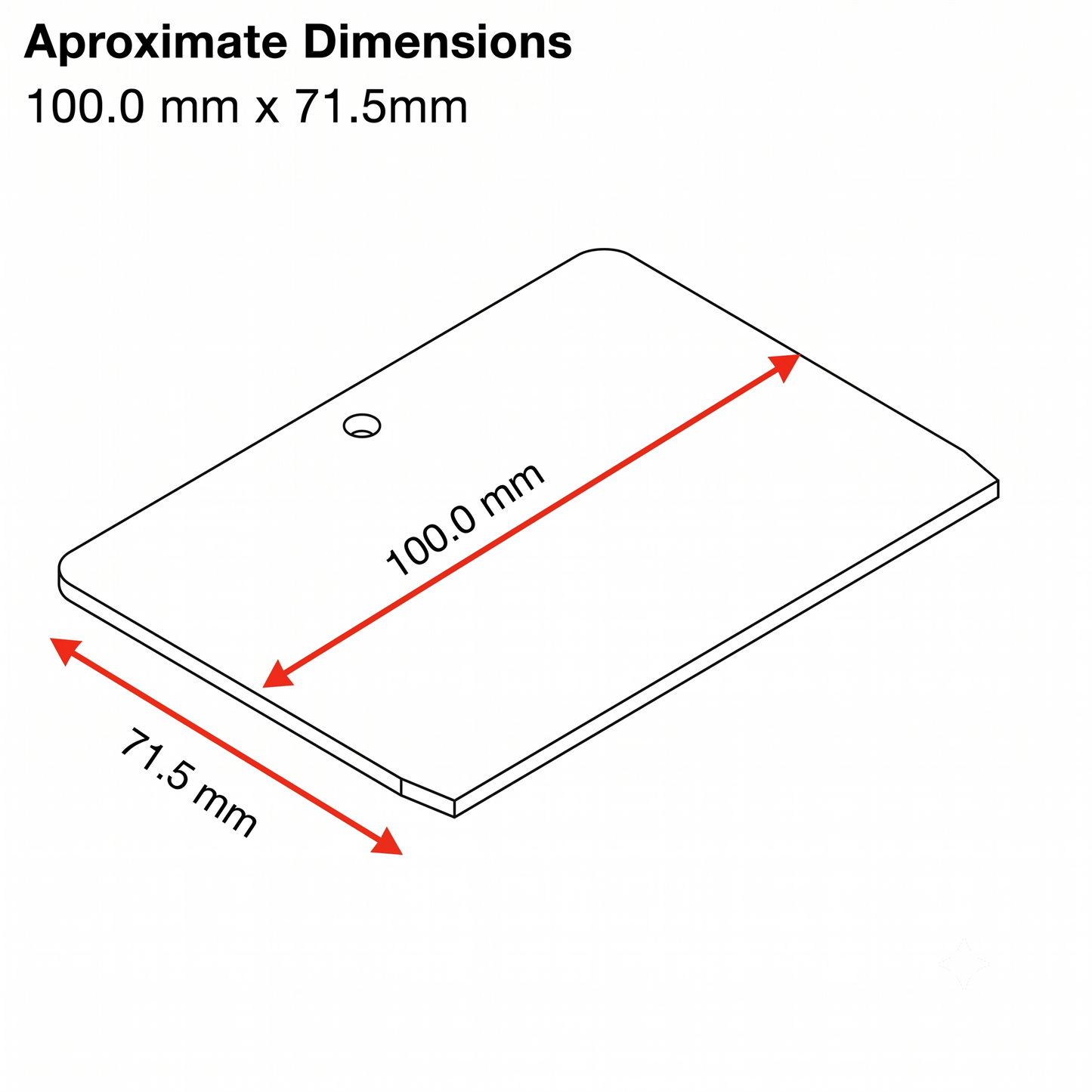

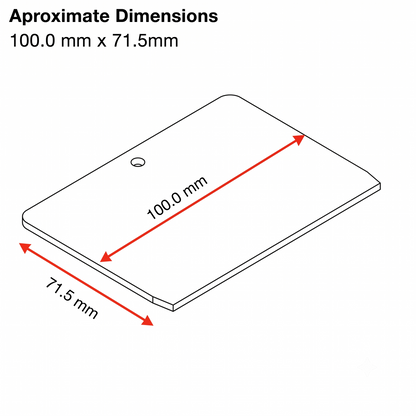

  • An image showing the approximate dimensions for a product. A line drawing of a rounded rectangle with one corner having a small circle is displayed. Two red arrows with double-ended points indicate the measurements: one for the length is labeled '100.0 mm', and the other for the width is labeled '71.5 mm'. The text at the top of the image explicitly states 'Aproximate Dimensions 100.0 mm x 71.5mm'.
1 2

Bosch Siemens Neff Microwave Waveguide Cover 00175593

Bosch Siemens Neff Microwave Waveguide Cover 00175593

£14.95
£14.95
Sale Sold out
Shipping calculated at checkout.

Keep your microwave running safely and efficiently with this genuine Neff, Bosch & Siemens Microwave Waveguide Cover (Part No. 00175593).

The waveguide cover (often referred to as a mica sheet) is an essential protective barrier inside your microwave. It allows microwave energy to pass through and heat your food while preventing moisture, fat, and food splatters from reaching the delicate internal electronic components and magnetron. Replacing a burnt, discoloured, or damaged waveguide cover prevents sparking, arcing, and long-term damage to your appliance.

Key Features & Specifications

  • Genuine Manufacturer Part: Official Neff replacement part (also fits compatible Bosch & Siemens models).
  • Part Number: 00175593
  • EAN: 3868906160245
  • Condition: Brand New
  • Pack Size: 1 x Waveguide Cover
  • Country of Manufacture: United Kingdom
  • Direct Fit: Made to exact factory specifications for quick and easy replacement.

Key Benefits

  • Prevents Microwave Arcing & Sparking: A clean cover stops food particles from burning onto the sheet, preventing electrical sparks inside the cavity.
  • Protects Core Components: Shields the magnetron and internal wiring against steam, grease, and moisture buildup.
  • Cost-Effective Repair: Replacing a worn waveguide sheet extends the life of your appliance without the expense of buying a new microwave.

Compatible Models

This part is verified to fit the following Neff microwave models:

Tip: Use Ctrl + F (or Cmd + F on Mac) to search for your model number below.

Model Series Compatible Model Numbers
H5430 Series H5430A0/02, H5430B0/02, H5430B0GB/02, H5430N0/02, H5430N0GB/02, H5430S0/02, H5430S0GB/02, H5430W0/02, H5430W0GB/02
H5440 Series H5440B0/01, H5440N0/01, H5440S0/01, H5440W0/01
H5460 Series H5460B0/01, H5460N0/01, H5460S0/01, H5460W0/01
H5470 Series H5470A0/02, H5470A0GB/02, H5470B0/01, H5470B0/02, H5470N0/01, H5470N0/02, H5470N0/03, H5470NOGB/02, H5470S0/01, H5470S0/02, H5470S0GB/01, H5470S0GB/02, H5470W0/01, H5470W0/02, H5470W0GB/02
H5620 Series H5620B0/01, H5620N0/01, H5620N0/02, H5620N0/03, H5620N0/04, H5620N0/05, H5620S0/01, H5620S0/02, H5620S0/04, H5620W0/01, H5620W0/02, H5620W0/04
H5640 Series H5640A0/01, H5640A0/02, H5640A0/04, H5640B0/01, H5640B0/02, H5640B0/03, H5640N0/01, H5640N0/02, H5640N0/04, H5640N0/05, H5640N0RU/01, H5640S0/01, H5640S0/02, H5640S0/04, H5640W0/02, H5640W0/03, H5640W0/04, H5640W001 (01)
H5642 Series H5642B0GB/01, H5642B0GB/02, H5642B0GB/03, H5642N0GB/01, H5642N0GB/02, H5642N0GB/04, H5642SOGB/01, H5642S0GB/02, H5642S0GB/04, H5642W0GB/01, H5642WOGB/02, H5642WOGB/04
H5950 Series H5950N0/01, H5950N0/02, H5950N0/03, H5950N0/04, H5950N0RU/01, H5950S0/01, H5950S0/03, H5950W0/01

When Should You Replace Your Wave Guard Cover?

Replacing a damaged mica plate is essential for microwave safety. You should replace yours if you notice:

  • ⚡ Arcing or Sparks: You see visible sparks inside the microwave during operation.
  • 💥 Burn Marks or Dark Spots: Visible scorching, black spots, or burning on the plate.
  • 💧 Grease Saturation: The card feels soggy, heavily grease-stained, or discoloured.
  • ✂️ Physical Damage: The card is cracked, flaking, broken, or missing pieces.
View full details
