• Two flat flexible circuitry ribbon cables with gray metal contacts at the ends, printed with technical specifications on a white background.
  • A close-up of a flexible copper trace PCB ribbon cable with two red circles highlighting damaged or broken traces on the ribbon.
  • Sony portable radio with an open clamshell design, featuring a digital display screen and a silver and black keypad base.

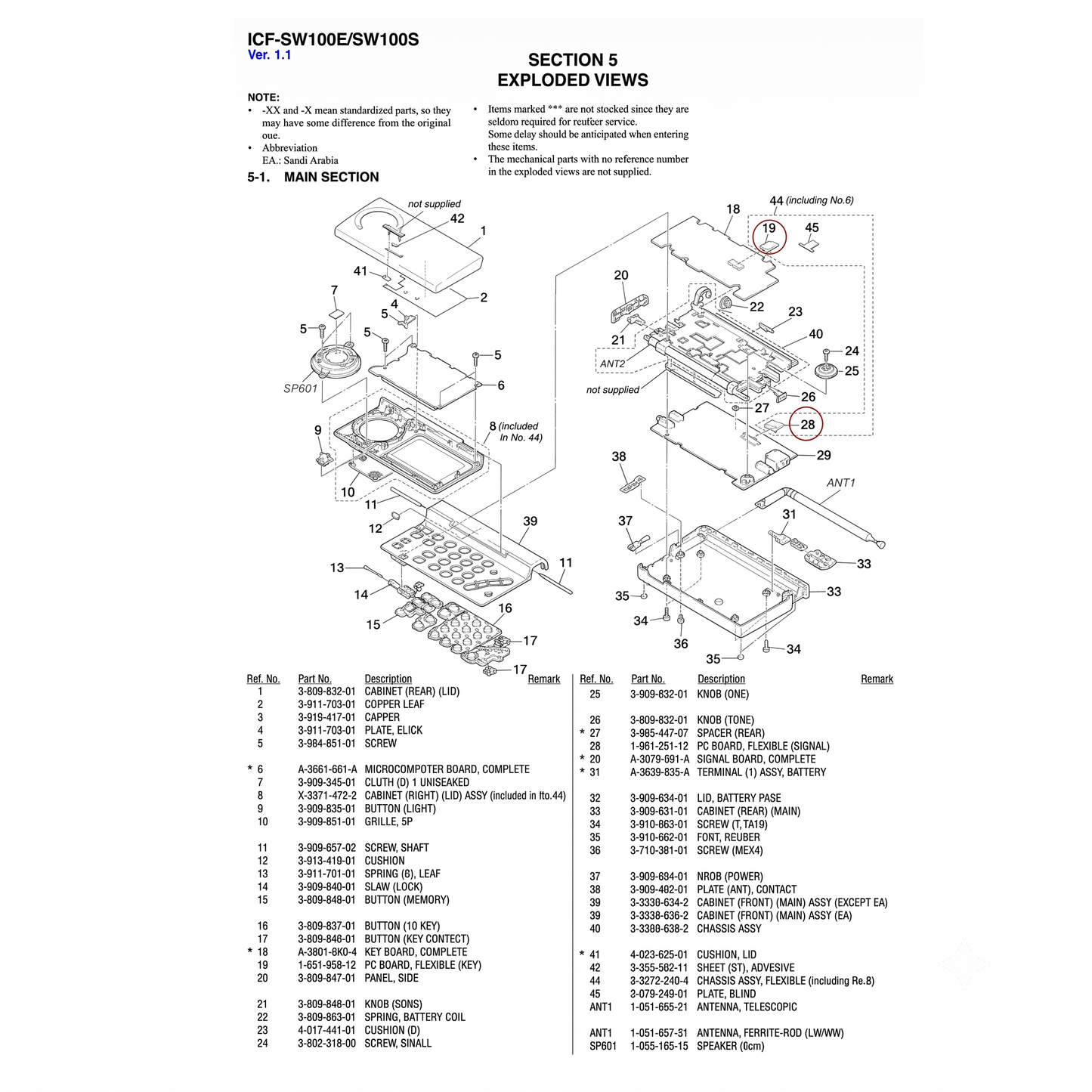

  • An exploded view technical schematic page for an ICF-SW100E/SW100S product, showing labeled parts, callouts, and a parts list table on a white background.
1 4

Sony ICF-SW100 Ribbon Cable Repair Kit

Sony ICF-SW100 Ribbon Cable Repair Kit

£6.00
£6.00
Sale Sold out
Shipping calculated at checkout.

Sony ICF-SW100 Ribbon Cable Repair Kit

Upgraded Replacement Flex Lead Set by Perform Research

Revive Your Classic Sony ICF-SW100 World Band Receiver

Is your iconic Sony ICF-SW100 shortwave radio suffering from a blank LCD screen, unresponsive buttons, or a total loss of function?

The most common cause of failure in these classic clamshell radios is the internal flexible ribbon cables. Over time, the repeated opening and closing of the hinge causes original factory cables to become brittle, crack, and snap. Because original Sony stock has long been discontinued, finding a reliable fix used to be difficult—until now.

This premium Perform Research Ribbon Cable Repair Kit is specifically engineered to replace worn factory leads with upgraded, ultra-durable flexible circuitry designed for long-lasting performance.

Key Features & Benefits

  • Engineered for Longevity: Manufactured using modern high-grade flex materials designed to withstand continuous hinge stress far better than vintage OEM cables.
  • Direct Fit Replacement: Prefabricated to mirror the exact routing paths and dimensions of the original Sony internal cables.
  • Complete Repair Solution: Includes both the keypad flex cable and the display signal cable to fully restore screen and control functionality.
  • Includes Guide: Comes complete with detailed disassembly and installation instructions to walk you through the repair step-by-step.

What’s Included in the Box

  • 1 x Key Cable (Ref No. 19 | Sony Part No. 1-651-256-12)
  • 1 x Signal Cable (Ref No. 28 | Sony Part No. 1-651-257-12)
  • 1 x Detailed Disassembly & Repair Instructions

Product Specifications

Brand / Manufacturer Perform Research
Manufacturer Part Number (MPN) 80738004
EAN / Barcode 3833132071672
Condition Brand New
Replaces Sony Part Numbers 1-651-256-12 (165125612) & 1-651-257-12 (165125712)

💡 Installation Tip

Repairing your radio is straightforward. During installation, ensure you fold and route the replacement cables in the exact same direction and orientation as the original factory leads.
